Dyness 3.6kWh 48V Li-Ion Battery

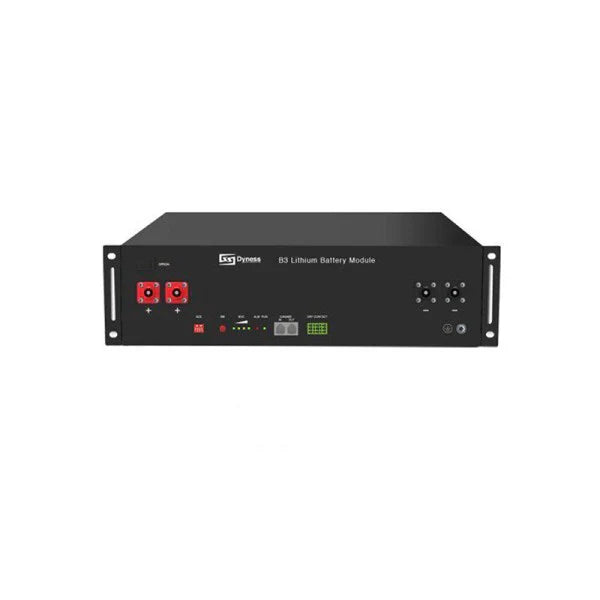

The Dyness B4874 rack mount battery module is widely used in energy storage household energy storage systems;

Intelligent Management:

\n
• Dyness is equipped with  intelligent BMS  for each battery pack to manage modules effectively.
\n
• Compared with the traditional module, B4874 can meet the capacity storage and greatly enhance the cycle life.
\n

Dyness compatability list:

\n
• Victron
\n
• Sacolar (solarway)
\n
• Goodwe
\n
• Imeon
\n
• Solis
\n
• Lux Power
\n
• Sofar
\n
• GMDE
\n
• Growatt
\n
• Voltronic
\n

Specification:

\n
• Nominal Energy: 3.552kWh
\n
• Nominal Capacity: 74Ah
\n
• Nominal Voltage: 48V
\n
• Max. Continuous Discharge Current: 50A
\n
• Max. Continuous Charge Current: 50A
\n
• Charging Cut-Off Vol: 54V
\n
• Discharging End-Off Vol: 40.5V
\n
• Net Weight: 30kg
\n
• Dimensions (W*D*H): 480*360*133.5mm
\n
• Protection Level: IP20
\n
• Calendar Life: 6000 Cycles
\n
• Charging Temperature Range: 0~50ºC
\n
• Discharging Temperature Range: -20~50ºC
\n
• Communication: CAN / RS485
\n
• Configuration: up to 142kWh total energy, 40 modules parallel at most
\n
• Recommend C Rate: 0.5C
\n
• Warranty: 10 years
