Features
\n

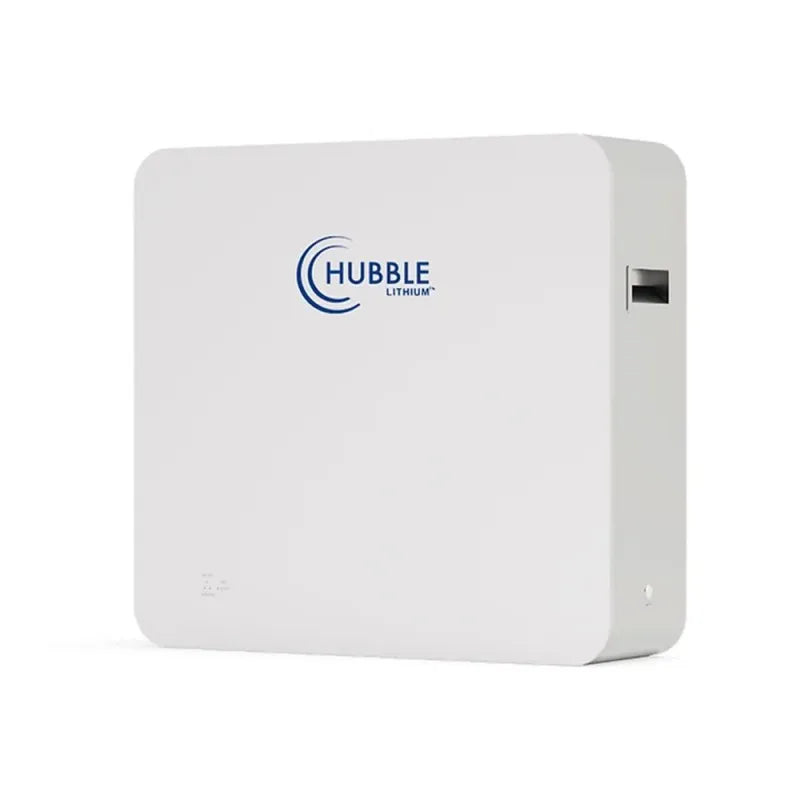

Hubble Lithium AM-10 200Ah 10kWh 51.2V Battery
R 32,999.00
-
\n
- Low self discharge \n
- High cycle and service life \n
- Easy wall mount or shelf rack installation \n
- Excellent high temperature performance \n
- 1C High performance lithium battery \n
- Advanced BMS with current limiting function Compatible with most inverters and chargers \n
- High energy density and conversion efficiency \n
- Complete with integrated Battery Management System Hubble Cloudlink integration ready for cloud monitoring Heavy duty side handles for easy handling and mounting on the wall \n
- Built in protection for over-charge, over-discharge & over-temperature \n
- CAN Bus fully integrates and communicates with leading Inverter brands \n
-
\n
- Model Hubble AM-10 \n
- Rated Capacity (5HR) 200 Ah \n
- Nominal Voltage 51.2 V Design \n
- Capacity 10 KWH Equalized Charge Voltage 55.2 V \n
- Continuous Charging Current 200A Max. \n
- Continuous Discharging Current 200A \n
- C Rating 1 C \n
- Weight Approx. 89 Kg \n
- Monitoring Optional Cloudlink \n
- Parallel Parallel connection up to 8 packs with full communications \n
- Dimensions (WxDxH) mm 673mm x 618mm x 193mm \n
- Ports CAN-bus, Battery Link Ports Cells Prismatic \n
- LiFePO4 Design Life +/- 15 Years Cycle Life Unlimited \n
- cycles within the Hubble Lithium 10 year warranty. Ts & Cs Apply. \n
- Certification CE IEC UN38.3 \n
- Outer Package Material White bake lacquer steel case \n
- Operating Temperature Charging: -10 to +50°C | Humidity: 15% to 75% | Storage: 10 to +50°C \n
- Protection Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting \n
