Features
\n
\n– Lithium pack designed to be easily wall-mounted or shelf installed in a standard rack.
\n– Parallel connection up to 15 packs with full communications
\n– +/- 3 000 Cycles @ 100% DOD, Above 6000 cycles @ 50% DOD
\n
\nSpecifications
\n
\n
\n– Model Hubble: X-101
\n– Rated Capacity (5HR): 110 Ah
\n– Nominal Voltage: 51.0 V
\n– Discharge Ending Voltage: 42.0 V
\n– Equalized Charge Voltage: 53.6 V
\n– Max. Charging Current: 100 A
\n– Max. Continuous Discharging Current: 100 A
\n– Cell C Rating: 1.0 C
\n– Weight: Approx. 42 Kg
\n– Configuration: 4 U
\n– Parallel: Parallel connection up to 15 packs with full communication
\n– Dimensions: (W x D x H)mm 442mm x 495mm x 177.5mm
\n– Maximum DC Limits: 1x CAN-bus, 2x RS-485 Battery Link ports, 1x RS232
\n– Cells: New Li-ion Prismatic Cells
\n– Design Life: +/- 15 years
\n– Cycle Life @ 1C: +/- 3 000 Cycles @ 100% DOD, Above 6000 cycles @ 50% DOD
\n– Certification: CE, UN38.3, GBT31484-2015, GBT31485-2015, GBT31486-2015
\n– Outer Package Material: White bake lacquer steel case
\n– Operating Temperature: Charging: 0 to +55°C | Discharging: -20 to +55°C | Storage: -20 to +55°C
\n– Protection: Electronic Circuit Breaker, BMS Voltage Protection, Under Voltage Protection
\n– Warranty – 10 Years / 3000 Cycles

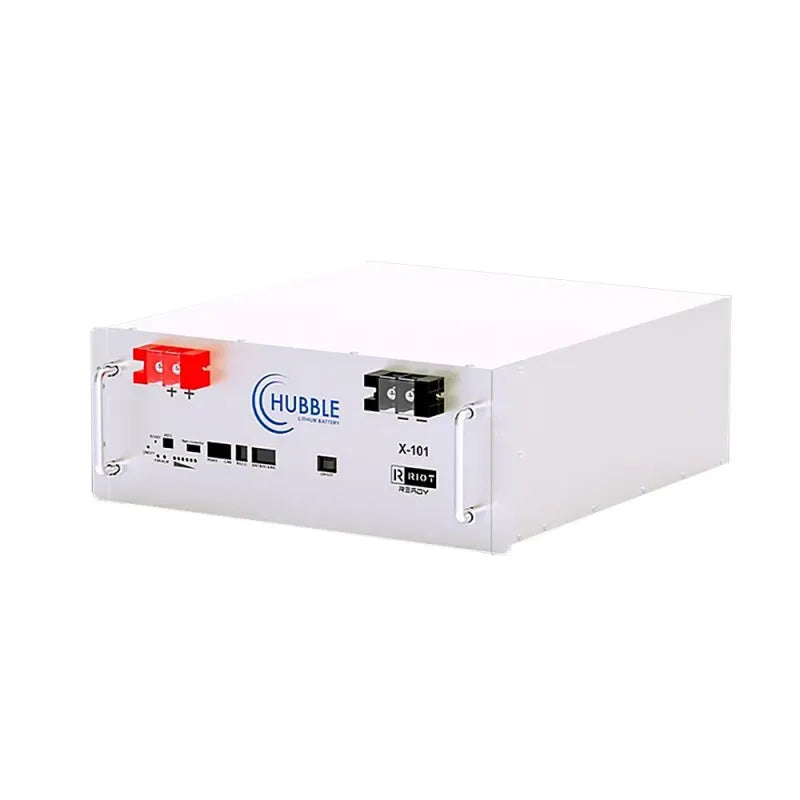

Hubble X-101 51V 5.5kW Lithium Li-Ion Battery
R 14,999.00
