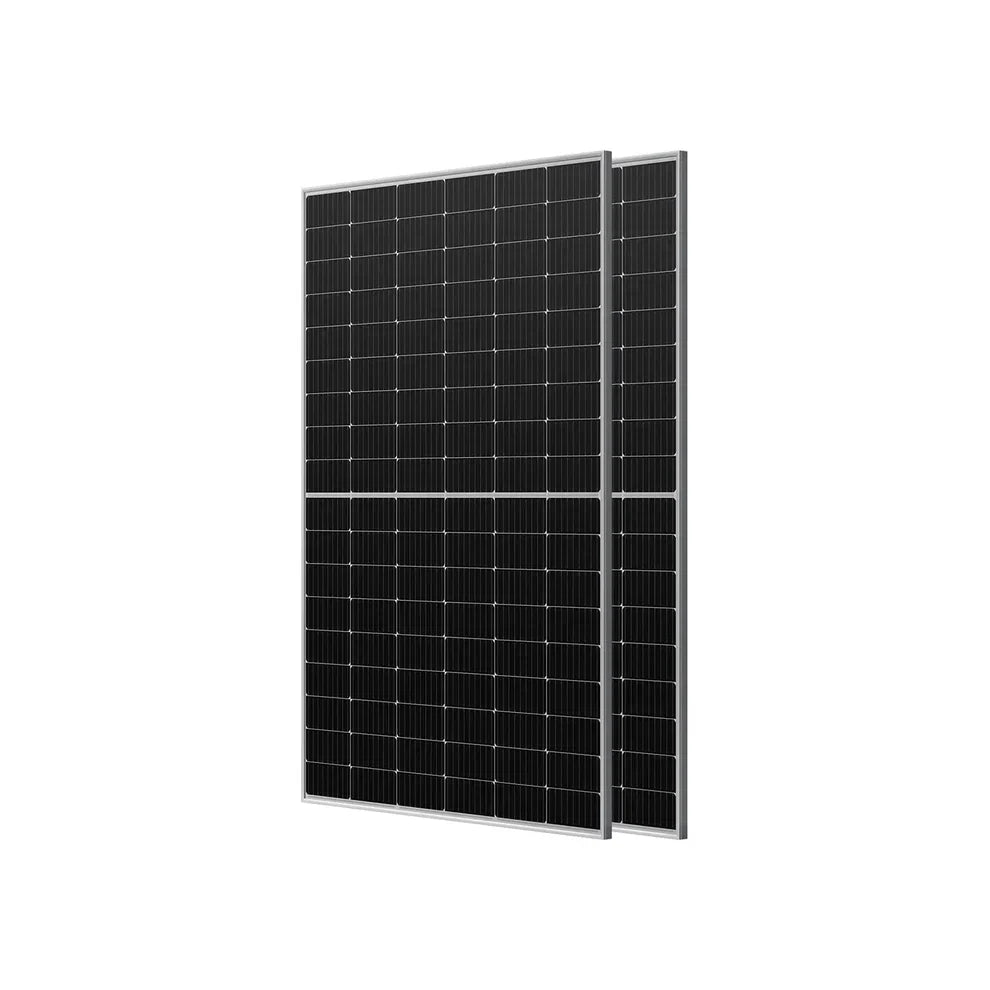

JA Solar 545W Mono PERC Half-Cell MBB MC4
JA Solar 545W Mono PERC Half-Cell MBB MC4

JA Solar 545W Mono PERC Half-Cell MBB MC4

R 1,699.00
In stock

JA Solar 545W Mono PERC Half-Cell MBB MC4 with 30mm frame thickness.

\nJAM72S30 is the latest in JA Solar’s 72 Cell range. This module with its 11Bus-bar half-cell configuration can reach up to a incredible power of 555Wp. This module offers better temperature-dependent performance and enhanced tolerance for mechanical loading. More benefits of this module range: \n

Product Features:

\n
    \n
  • Rating: 545W
    • \n
  • Efficiency: 21.1%
    • \n
  • Width: 1,134mm
    • \n
  • Height: 2,278mm
    • \n
  • Depth: 30mm
    • \n
  • Higher power output
    • \n
  • Less shading
    • \n
  • Lower resistive losses
    • \n
  • Lower LCOE
    • \n
\nThe frame thickness for this module has been improved from 35mm to 30mm. \n \nThis module is equipped with Staubli MC4-EVO2A connectors. \n \nWarranty: 12-year product & 25-year linear power output. \n

Specifications:

\n
    \n
  • VMPP: – 41.8V
    • \n
  • IMPP: – 13.04A
    • \n
  • Isc: – 13.93A
    • \n
  • Voc: – 49.75V
    • \n
  • Clamp position on panel: – Long side only
    • \n
  • Connector Type: – EVO2
    • \n
