The BL5.0 Kodak battery is a high performance, 4.94kWh, scalable battery module perfect for expanding systems. A single BL5.0 battery module allows up to 7500W of continuous discharge power. This means only one BL5.0 battery module is required for a 5-8kW inverter or only two required for a 15kW inverter.
\n

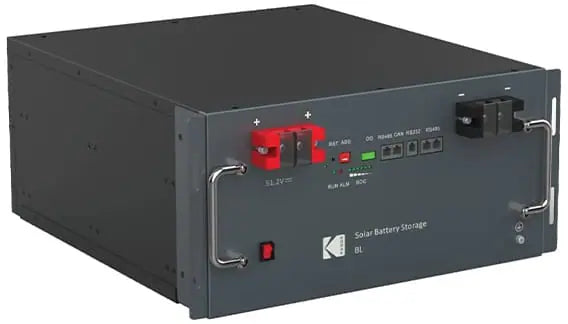

Kodak BL5.0 4.94kWh 48V Lithium Battery
R 15,999.00
-
\n
- 1.5 C industry leading discharge C- rating allows single battery deployments for 7+kW inverter systems \n
- 4.94 kWhrs capable of 15 units in parallel totaling 74.1 kWhrs \n
- RS485 and CAN communication ensures full compatibility with KODAK and Sunsynk \n
- Industry leading 95% DOD allowing for more useable capacity from the battery \n
- 10 year standard warranty \n
- Cycle life depends on DoD set via inverter. \n
- 80% DoD @ 25°C = 6000+ cycles. \n
- Up to 95% DoD @ 25°C = 3600+ cycles. \n
- Weight:51 kg \n
- Battery Type: Lithium Ion \n
- Nominal Energy:4940 Wh \n
- Depth of discharge:95.00 % \n
- Voltage:48 V \n
- Continuous Discharge Rate (Normal Use):7500 W \n
- Maximum Discharge Rate (5 Minutes):7600 W \n
- Surge Discharge Rate (15 Seconds):8000 W \n
- Maximum Charge Rate (5 Minutes):2560 W \n
- Warranty:10 years warranty, > 6000 cycles life \n
KODAK Solar Battery Storage BL5.0
\n-
\n
- Discharge Current 150A (1.5C) \n
- Over voltage protection \n
- Under voltage protection \n
- Short-circuit protection \n
- High/low temperature charge protection \n
- High/low temperature discharge protection \n
- Charge/discharge over-current protection \n
- Dormancy function \n
- RS232/RS485/CAN communication \n
Basic Parameters
\n-
\n
- Rated Power: 7500W \n
- Parallel Capability: Up to 15 units \n
- Rated Voltage: 51.2V/96.6Ah \n
- Nominal capacity: 4.945kWh \n
Physical
\n-
\n
- Dimension, D x W x H (mm): 220.6 x 438 x 536 \n
- Net Weight (kgs):50kg \n
- Communication Interface: RS232/RS485/CAN \n
Electrical Parameters
\n-
\n
- Charge mode: CC/CV/CP \n
- Charging current: 50A（0.5C @25℃, recommended） \n
- Charging cut-off voltage: 58.4V(3650mV for cell) \n
- Discharge mode: CC/CP \n
- Discharging cut-off voltage: 40.0V(2500mV for cell) \n
- Discharge current: 150A (1.5C continuous) \n
Environment
\n-
\n
- Humidity: 5% to 95% Relative Humidity (Non-condensing) \n
- Operating Temperature: Charge：0~+50℃/Discharge：-20~+60℃ \n
- Storage Temperature: -20~+55℃（three months）/-20~+25℃（one year） \n
- Shipment Stat Voltage：52V~54V SOC：60%~80% \n
