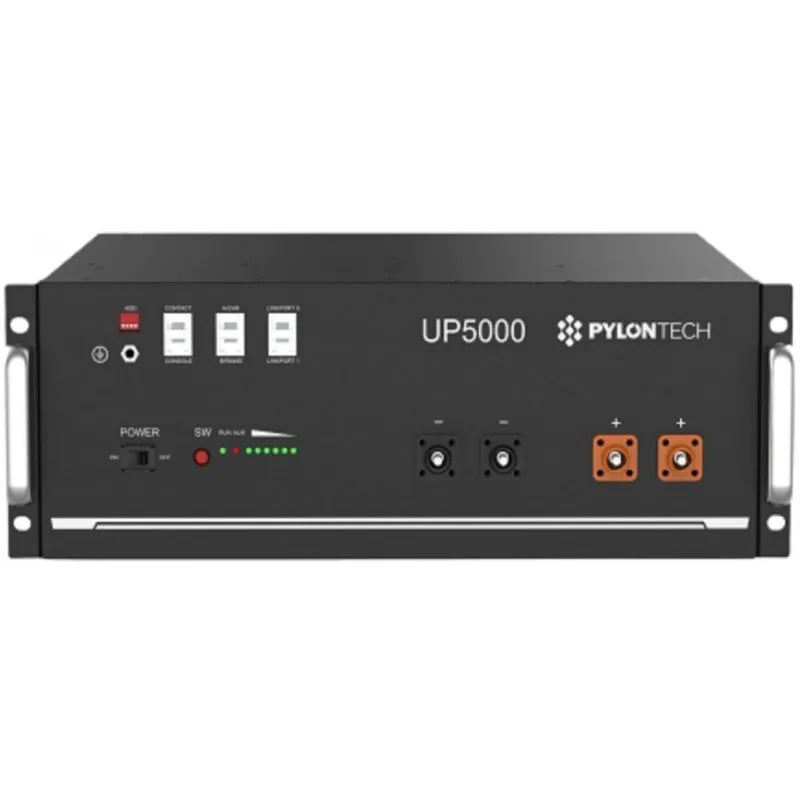

Pylontech UP5000 100Ah 4.8kWh 48V Li-Ion Battery
Pylontech UP5000 100Ah 4.8kWh 48V Li-Ion Battery

Pylontech UP5000 100Ah 4.8kWh 48V Li-Ion Battery

R 14,999.00
9 left
Product Features \n
    \n
  • Modular design for ease of expansion.
    • \n
  • Higher usable capacity resulting in less battery modules installed.
    • \n
  • Usable capacity 4 560Wh.
    • \n
  • Parallel Capability of up to 16 units.
    • \n
  • Allows for large installation of up to 72.96kWh with no LV Hub.
    • \n
  • Intelligent BMS protecting battery cells.
    • \n
  • 95% DoD with more usable capacity.
    • \n
  • RS485 and CAN compatible.
    • \n
  • Comes with a 5-year warranty non-extendable.
    • \n
\nSpecifications \nNominal \n
    \n
  • Nominal Voltage（V）: 48.
    • \n
  • Nominal Capacity（Wh）: 4800.
    • \n
  • Useable Capacity（Wh）: 4560.
    • \n
\nPhysical \n
    \n
  • Dimension（mm）: 442*420*165.
    • \n
  • Weight（Kg）: 41.
    • \n
\nElectrical \n
    \n
  • Discharge Voltage（Vdc）: 44.5.
    • \n
  • Charge Voltage（Vdc）: 52.5 ~ 53.5.
    • \n
  • Charge / Discharge Current（Amps）: 50（Continuous） 74-89(60sec） 90-200A（Peak@15sec）.
    • \n
\nOthers \n
    \n
  • Communication Port: RS485,CAN.
    • \n
  • Single string quantity(pcs): 16.
    • \n
  • Altitude (M): ＜4000.
    • \n
  • IP rating: IP20.
    • \n
  • Design life: 10+ Years.
    • \n
  • Cycle Life: >4,500.
    • \n
