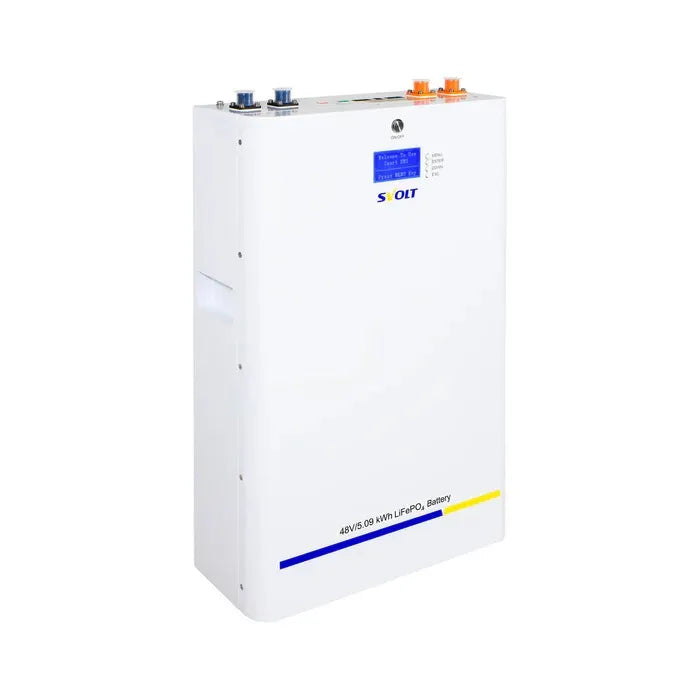

SVOLT 48V 106AH 5.09Kwh A-Grade Lithium Battery
SVOLT 48V 106AH 5.09Kwh A-Grade Lithium Battery

SVOLT 48V 106AH 5.09Kwh A-Grade Lithium Battery

R 12,999.00
10 left
The SVOLT 48V 106AH 5.09Kwh A-Grade Lithium Battery, manufactured by SVOLT in collaboration with Haval groups, offers exceptional performance and reliability. With A-Grade battery cells and advanced technology, this maintenance-free battery is ideal for various applications, including solar and renewable energy storage, electric vehicles, industrial equipment, medical devices, telecommunications, TVs, and UPS systems. Its rack-mounted installation type and compact design make it suitable for industrial, residential, commercial, and private use. \n \nSpecifications : \n
    \n
  • Energy:5.09kWh
    • \n
  • Installation Type: Wall Mounted
    • \n
  • Battery type-Chemistry: LiFePO4
    • \n
  • Nominal Voltage:48V
    • \n
  • Nominal Capacity :106Ah
    • \n
  • Energy Density:5427 KWh
    • \n
  • Dimensions(LxWxH) :688 x 447 x 211mm
    • \n
  • Weight (Approx.):49.5KGS
    • \n
  • Terminal Type: M6
    • \n
  • Terminal Torque:8.5NM
    • \n
  • Case Material: SPCC
    • \n
  • BMS build-in: Yes
    • \n
  • Internal Resistance:<30mO
    • \n
  • Efficiency – round trip:99%
    • \n
  • Self Discharge per Month:<3%
    • \n
  • Max parallel connectors:16Pcs
    • \n
  • Series connections:Not Allowed
    • \n
  • Cycle life (0.2C, 25°C@80% DOD) Discharge Temperature:6000 Cycles
    • \n
  • Charge Temperature :20° C to 65°
    • \n
  • Storage Temperature :0C to 50° C
    • \n
  • Bluetooth(App) :Optional
    • \n
  • LCD Screen: Optional
    • \n
  • Heating Function: Optional
    • \n
  • Voltage Window: Optional
    • \n
  • Recommend Charge Voltage:43.2V-58.4V
    • \n
  • Max Charge Voltage:57.6±0.20V
    • \n
  • Recommend Charge current:58.4±0.20V
    • \n
  • Max Discharging Voltage:43.2±0.20V
    • \n
  • Max Continuous Discharge Current :100A
    • \n
  • Peak Discharge Current:150A
    • \n
\nFeatures : \n
    \n
  • Manufactured by SVOLT in collaboration with Haval groups, known for their excellence in vehicles
    • \n
  • A-Grade lithium battery cells for superior performance and reliability
    • \n
  • Designed for environmentally sensitive areas and committed to recycling
    • \n
  • Widely used in industrial, residential, commercial, and private applications
    • \n
  • Maintenance-free construction for convenience
    • \n
  • Suitable for solar and renewable energy storage, electric vehicles, industrial equipment, medical devices, telecommunications, TVs, and UPS systems
    • \n
  • Built-in Battery Management System (BMS) for efficient monitoring and protection
    • \n
  • High energy efficiency with a round trip efficiency of 99%
    • \n
  • Low self-discharge rate of less than 3% per month
    • \n
  • Compact and lightweight design for easy handling
    • \n
  • Optional features include Bluetooth (App), LCD screen, heating function, and voltage window
    • \n
  • Wide temperature range of operation and storage
    • \n
  • Warranty: 5 years
    • \n
\nWhat’s In the Box : \n
    \n
  • 1 x SVOLT 48V 106Ah 5.09kw A-Grade Lithium Battery
    • \n
  • 1 x Red (Positive) Battery Cable
    • \n
  • 1 x Black (Negative) Battery Cable
    • \n
  • 1 x Ethernet cable
    • \n
  • 1 x Manual
